Baxi 1.5

Category:

Specification (1.5 Ton)



Technical Specification

Model No: LS1NW18

Cooling Output Capacity (Min-Max)   BTU   17401 (6482-17742)

Heating Output Capacity (Min-Max)   BTU   18424 (4776-18766)

Min Input Power Cooling                       Watts                                    154

Min Running Power Cooling                 A                                             0.7

Max Input Power Cooling                      Watts                                    1764

Max Running Power Cooling                 A                                             8.0

S-EER (Seasonal Energy Efficiency Ratio)                 Cooling                                 6.1

Power Source                                             v/ Ph /Hz                              220-240/1/50

S-COP (Seasonal Co-Efficient of Performance)     Heating                                4.0

Energy efficiency cooling                          A++

Liquid Pipe diameter                                 6.35 mm (1/4”)

Diameter Gas Pipe                                     12.7 mm (1/2”)

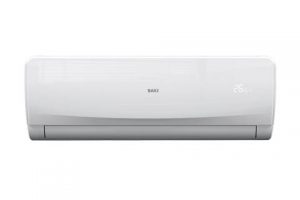

 Indoor Unit

Model No: LSINW18

Airflow                                                       1000 m3/h

Sound Level (Night Mode)                    20 dB (A)

Weight                                                       14 kg

Dimension (W x H x D)                         970 x 315 x 235 mm

 Outdoor Unit

 Model No: LSITM18

Combinability                                          1 x 1

Type Refrigerant gas                              R410A

Amount of Refrigerant gas                    1.720 kg

Maximum Discharge Pressure             4.15 MPa

High Pressure Suction                           1.15 MPa

Sound level                                               55 dB (A)

Weight                                                       38 kg

Dimension (W x H x D)                         802 x 535 x 298 mm
